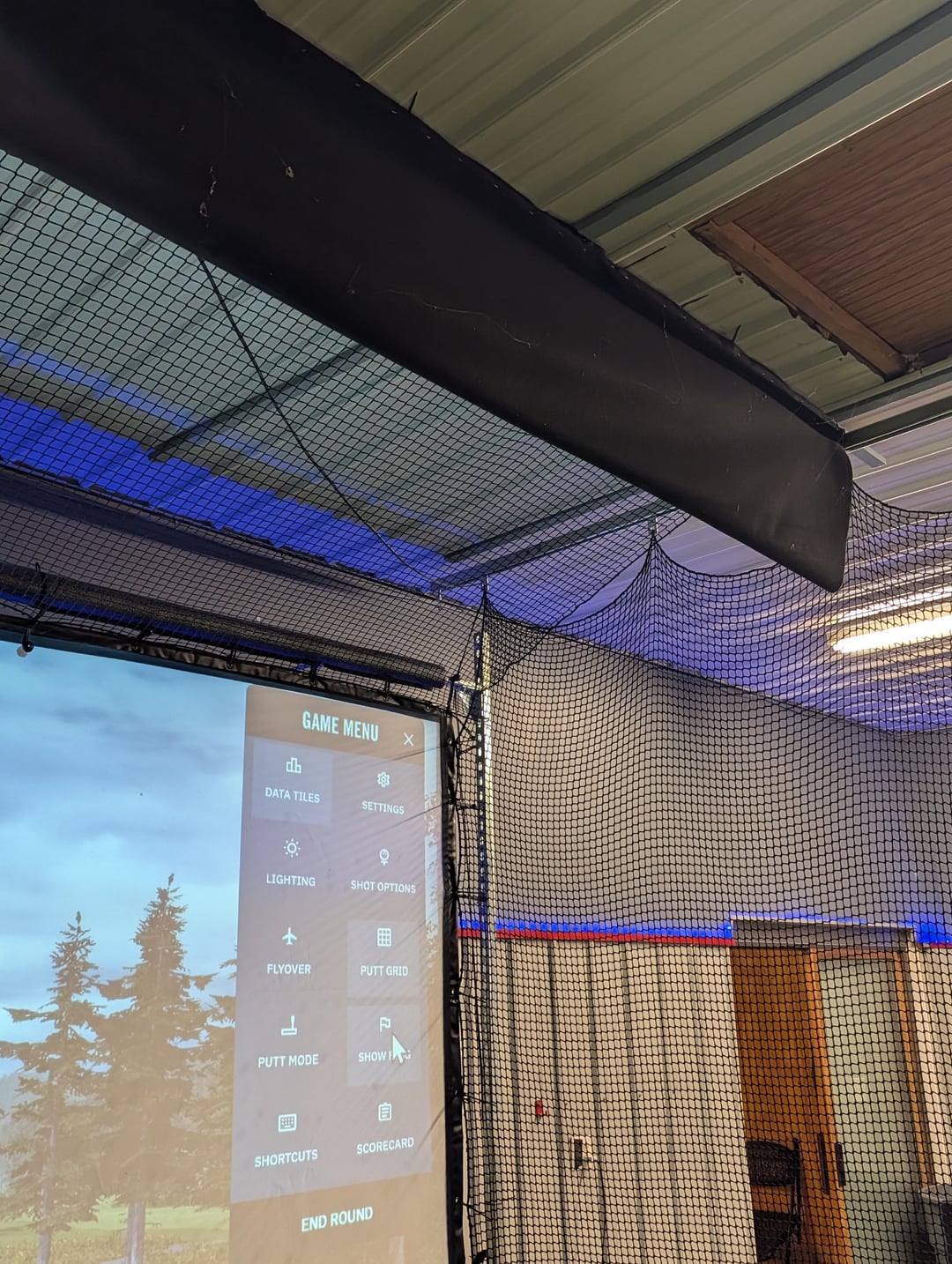

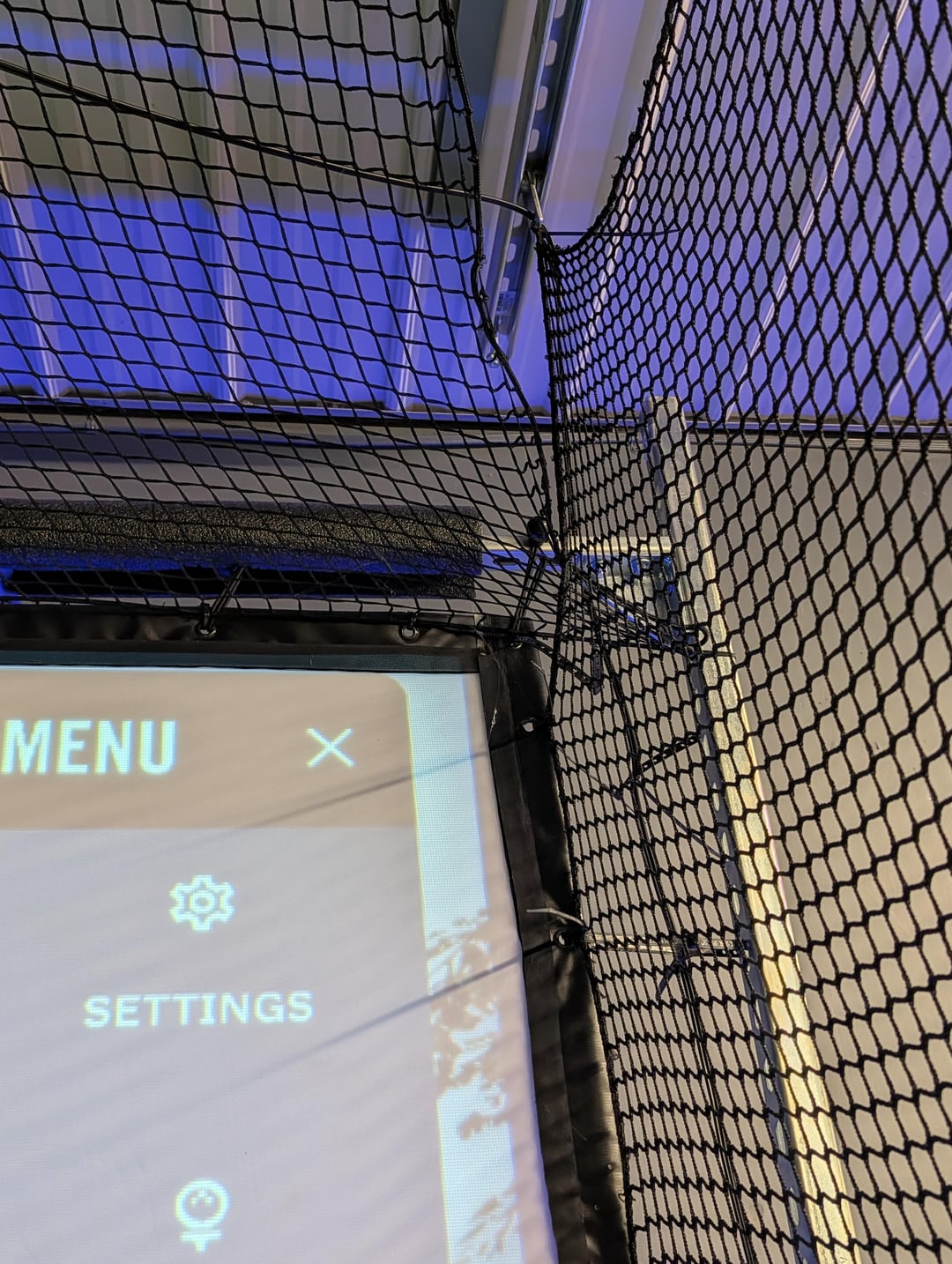

16×10 screen, 16:10 projector, Intel NUC gaming PC with 2060 GPU, FlightScope Mevo+ launch monitor. I went with the highest quality impact screen (no bounce back) mounted on electrical strut channel, bolted to concrete floor, ceiling, and kept 12" from wall with shelf brackets. You can see how I used sports netting on rollers for the side curtains. And angled netting in the front four feet with heavy felt curtain material from hobby lobby for those high shots.

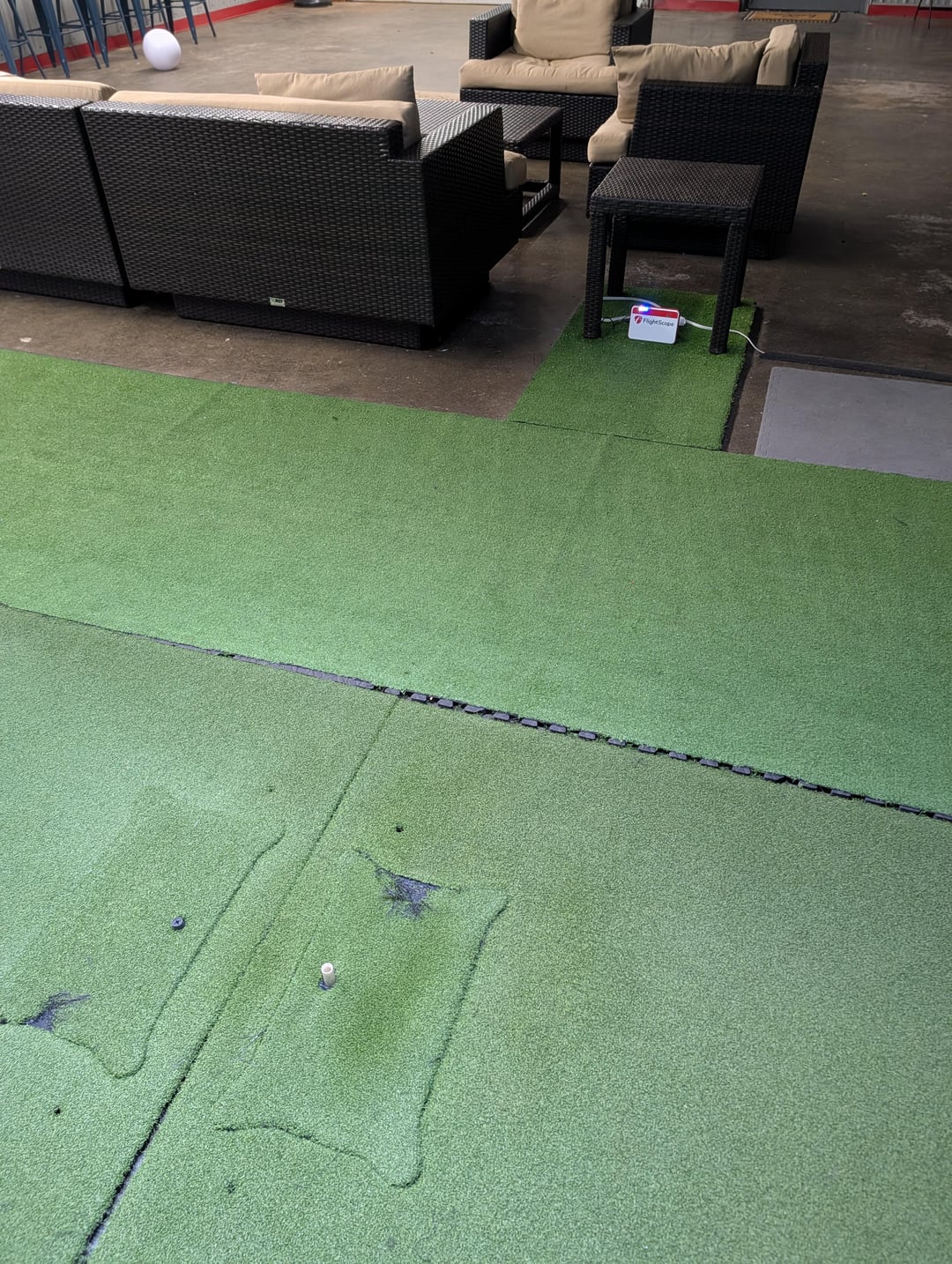

Left and right hand players accommodated. Golf golf pro hitting mats are ok for the price ($250 each). Rest of green is order to size carpet from amazon sitting on 1" foam interlocking foam mat floor tiles.
There's a 45" piece of angled foam on the floor between the bottom channel and the screen. The screen is NOT zip ties on the botton and performs better that way, not being taught, having some give.
Downward lights above hitting mats help since the the screen looks better in a dark room.

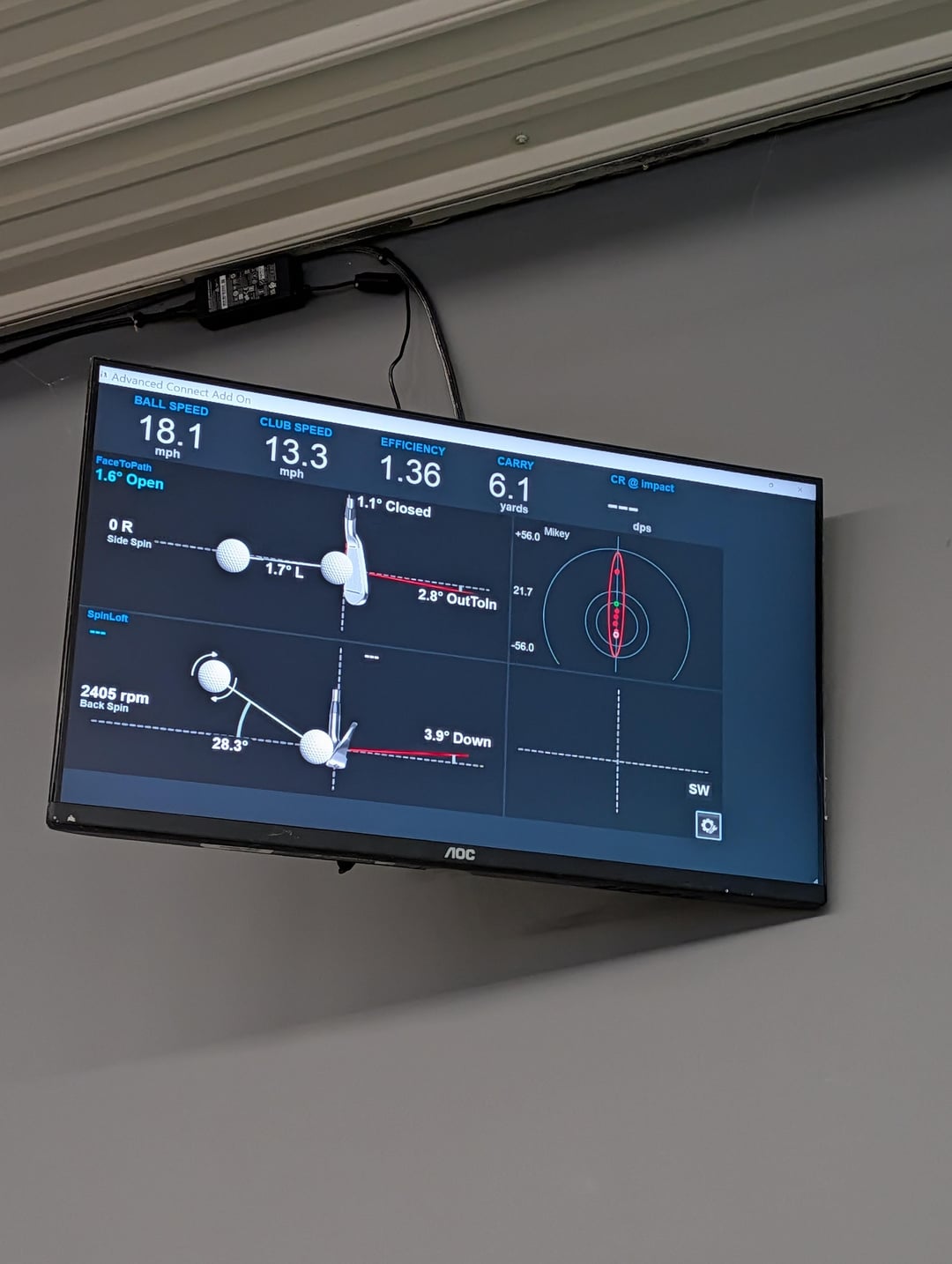

Accessories are a club rack and a second monitor (only like 26") for the launch monitor stats after each hit.

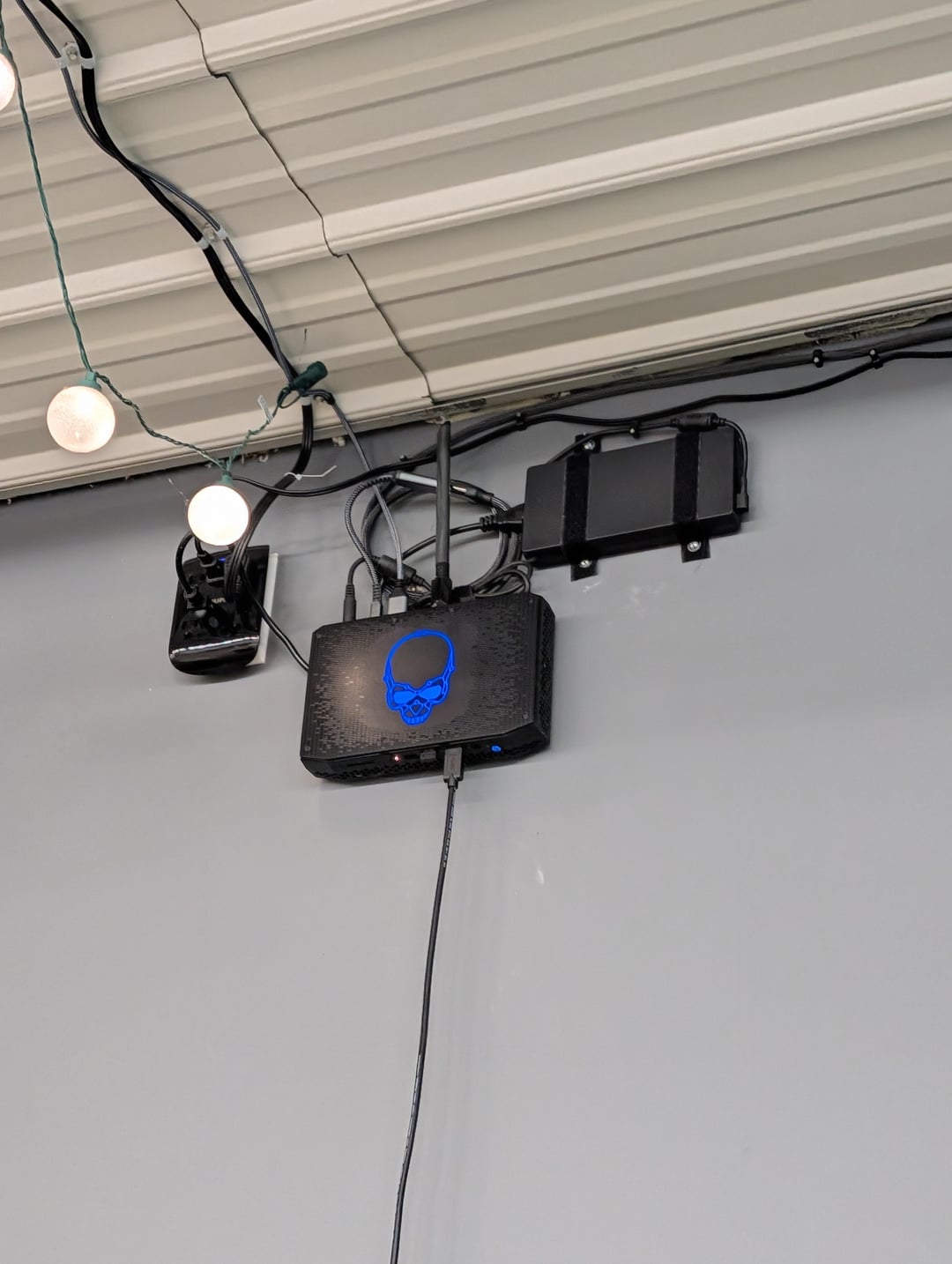

As the the computer, trust me that the NUC with a 2060 is all you need to run all the golf games at max settings. (I worked 16 years on the Xbox and Direct3D teams, optimized AAA games for AMD and nVidia GPUs. With all due respect for people over thinking monster PCs, you can trust that I know my stuff.)

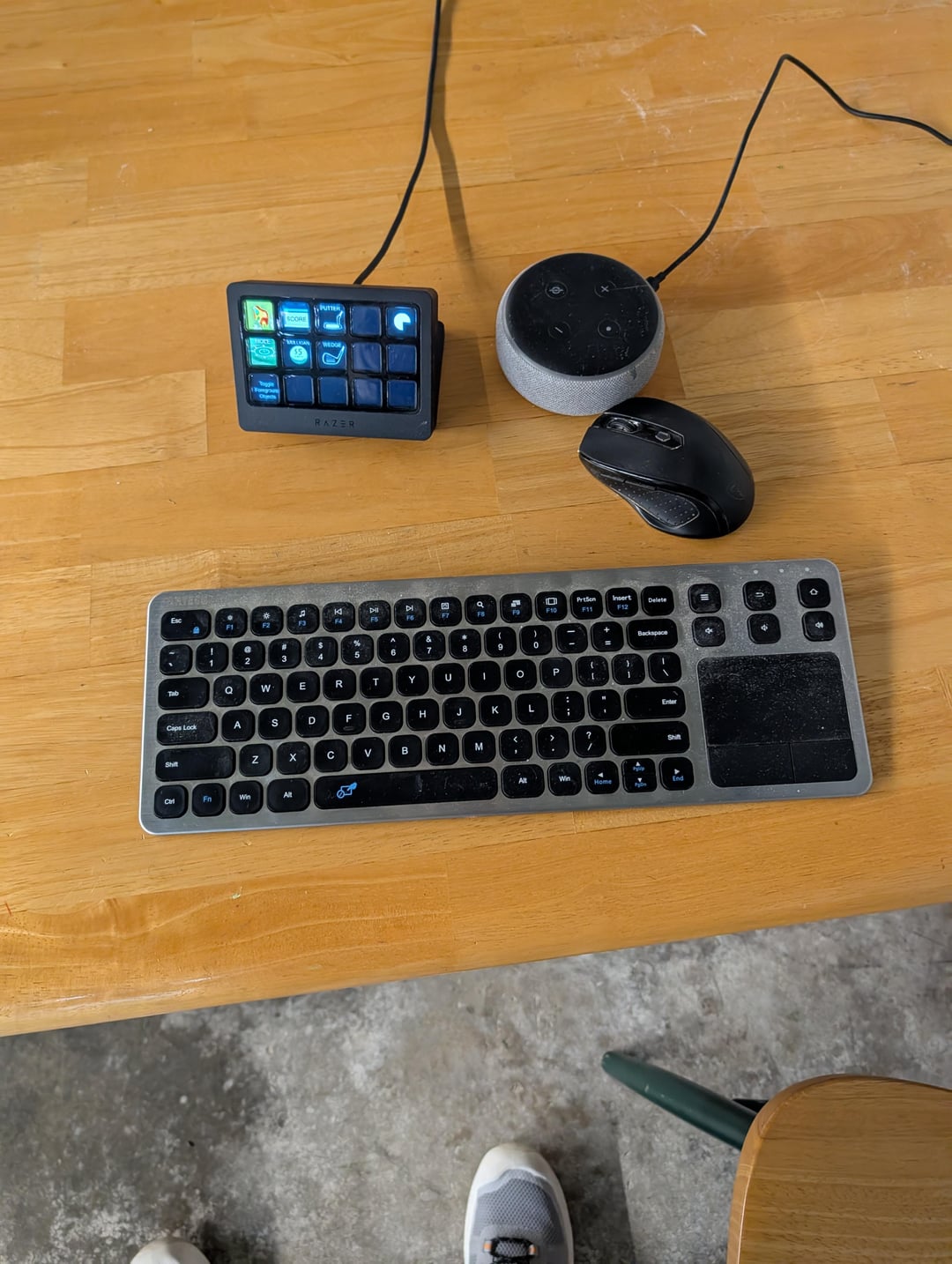

And it mounts on the wall or ceiling! Wireless keyboard and mouse, also velcro to wall for storage.
The Razer Stream Controller X has custom graphics with buttons for things like mulligans, scorecard, launching golf apps, etc.

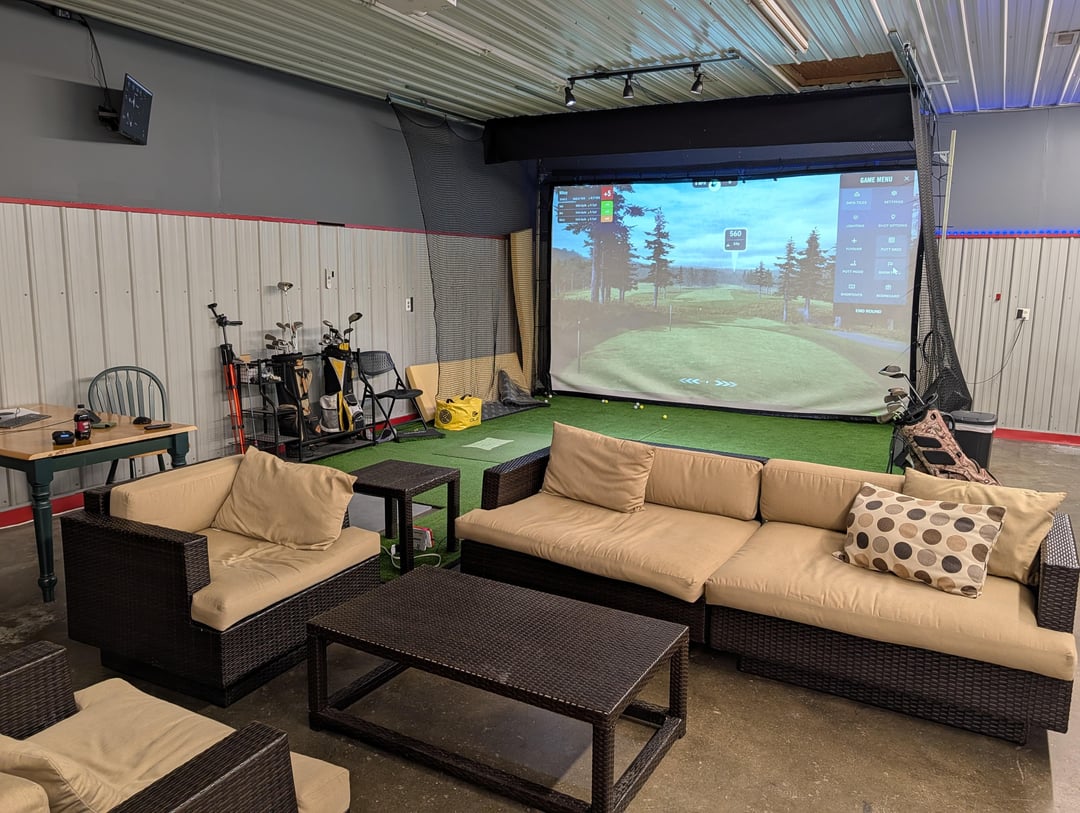

Rest of room has coaches and TVs. We throw parties here. Ceiling is 10'6", btw. The 16' width of the enclosed area accomadates left and right handers with no space concerns.
One thing missing is audio. We listen to music and sports on the TV. I don't want or need to hear in game audio.
Software, I have FlightScope for training, E6 (which I never use), and GS Pro. Plus, I write custom tools and parlor games that use the sim.
by Famous-Weight2271
